Features
16 Bend Types. One App.
Offsets, saddles, 90s, rolling bends, and more. Every conduit calculation an electrician needs, with built-in bender data and dual-unit support.

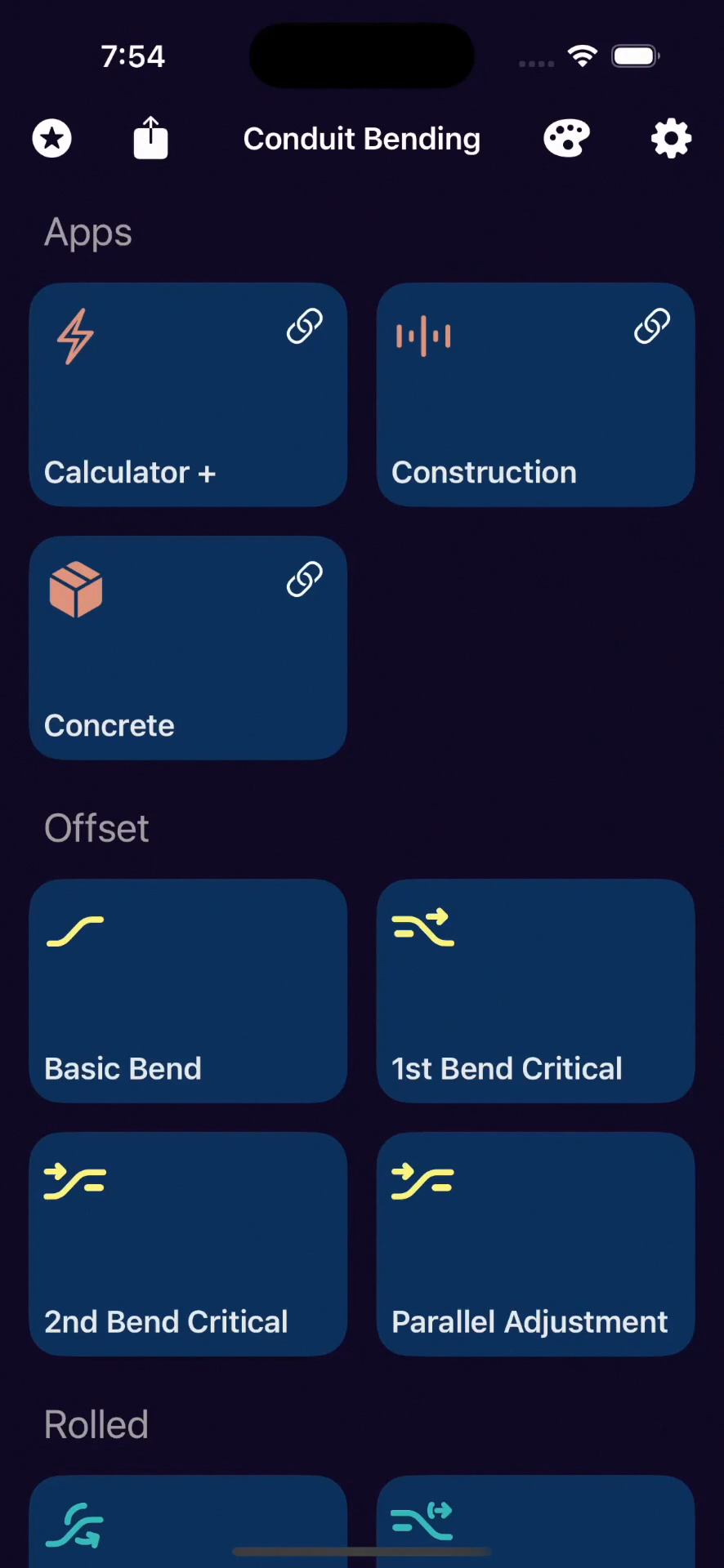

Offset Bends
Calculate offset angle, travel, and shrink for any bend angle. Get precise measurements every time.
- Any angle: Work with 10, 22.5, 30, 45, or 60 degree offsets
- Travel distance: Know exactly how much conduit you need between bends
- Shrink calculation: Compensate for the distance lost in the bend
- Multiplier reference: Built-in multipliers for every standard angle

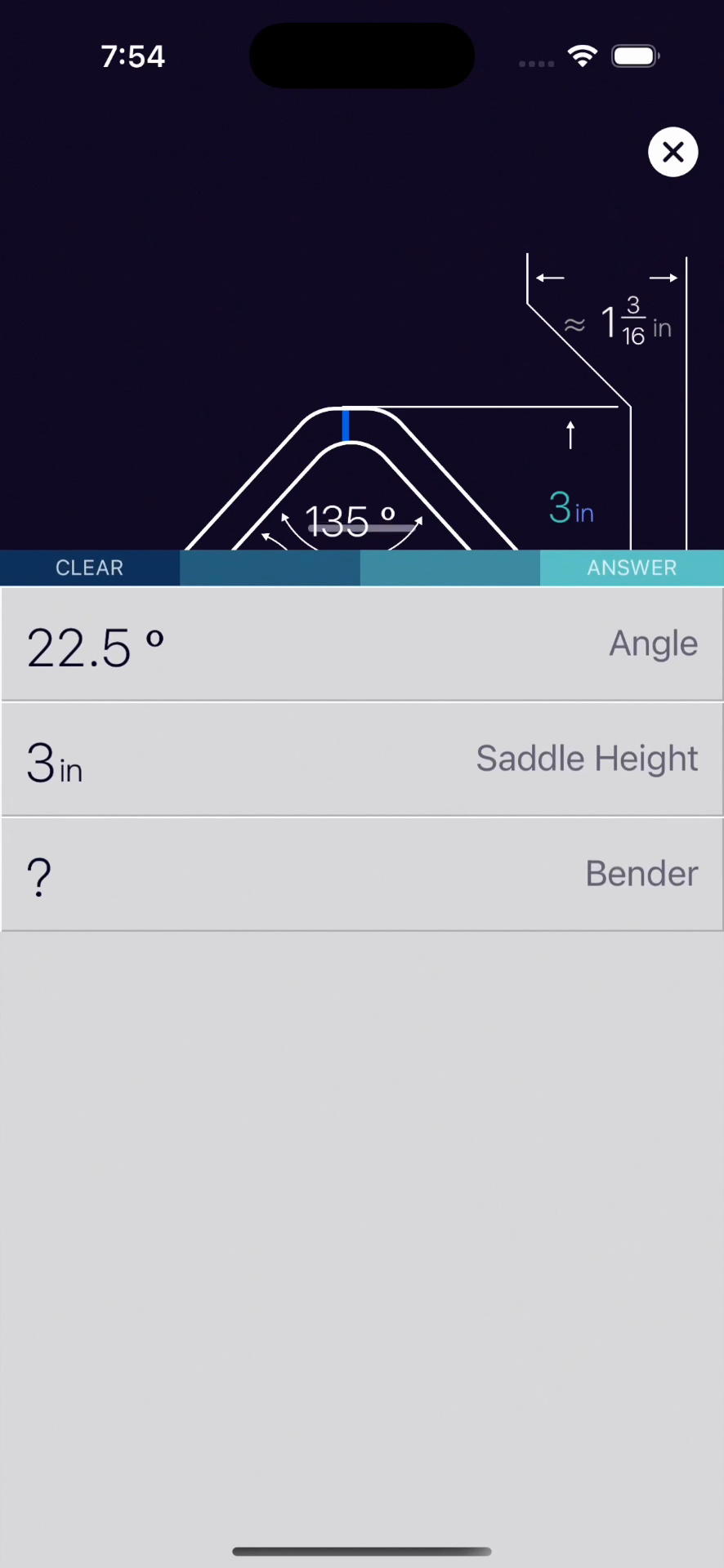

Saddle Bends
Complete 3-point and 4-point saddle calculations for routing conduit over obstacles.
- 3-point saddles: Center bend with two return bends for smaller obstructions
- 4-point saddles: Two pairs of bends for wider obstacles
- Obstruction height: Enter the obstacle size and get all bend marks
- Mark spacing: Precise distances between each bend mark on the conduit

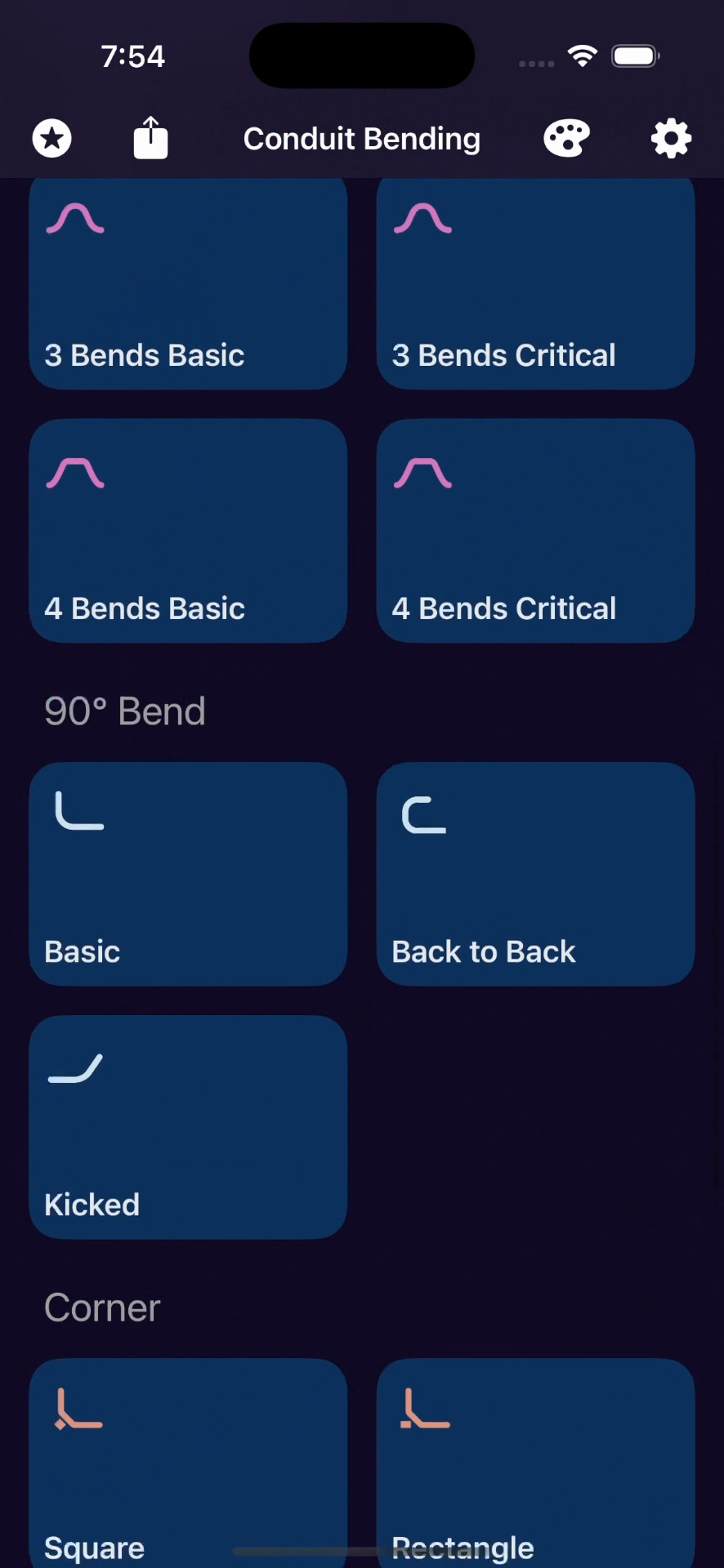

90-Degree Bends
Stub-ups, back-to-back 90s, and kicked 90s with accurate deduct values for every conduit size.
- Stub-ups: Calculate the mark for a precise stub-up height
- Back-to-back: Two 90-degree bends with exact spacing
- Kicked 90s: Combine a 90 with an offset in a single run
- Deduct values: Automatic deduct based on conduit size and bender type
Rolling Offsets
Solve 3D offset calculations with roll angle when conduit needs to move both vertically and horizontally.
- 3D calculations: Handle offsets that change direction in two planes simultaneously
- Roll angle: Get the exact roll angle for your bender
- True offset distance: Calculate the actual travel through the diagonal
- Rise and roll: Enter vertical rise and horizontal roll to get all values

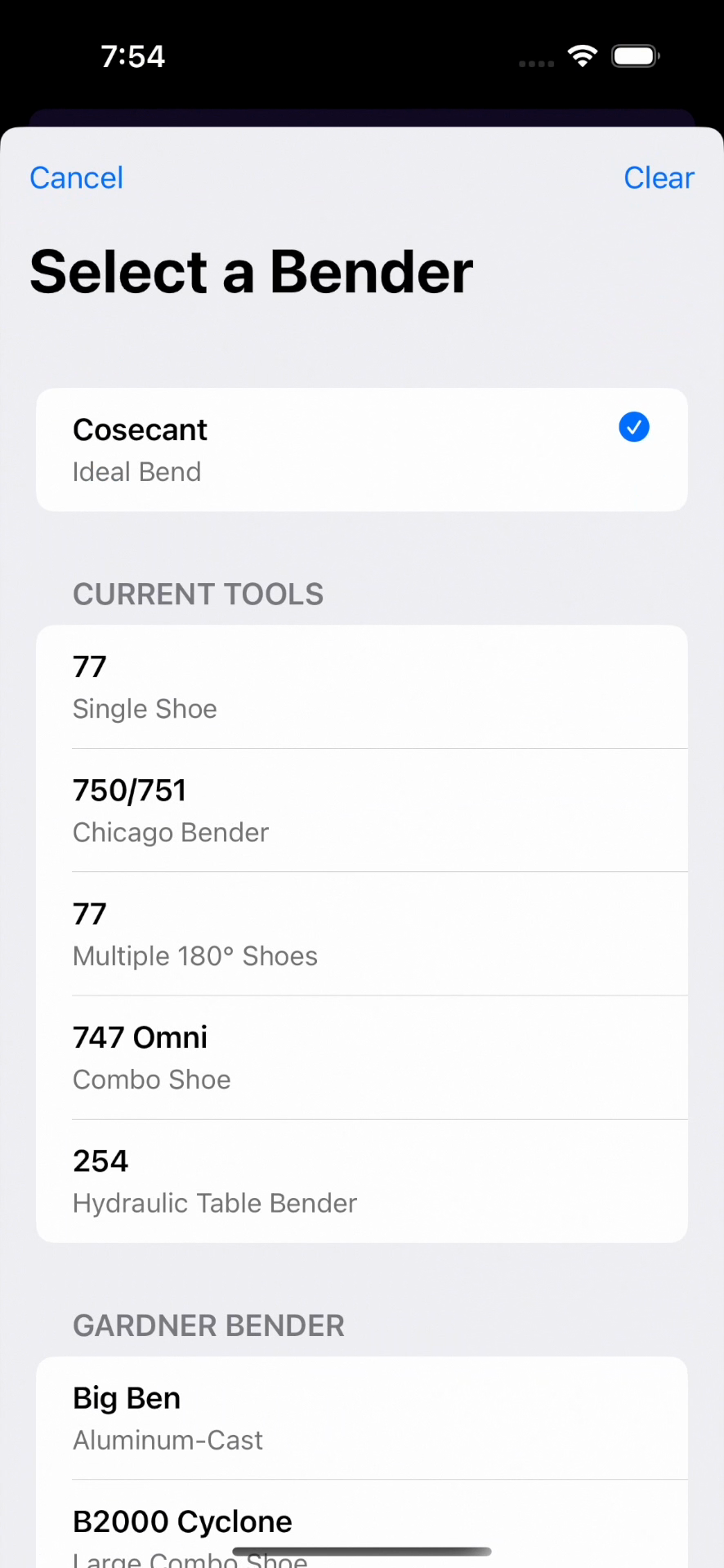

Bender Library
Built-in data for EMT, IMC, and Rigid conduit from 1/2" to 4" with all the values you need.
- Three conduit types: EMT, IMC, and Rigid with complete specifications
- Sizes 1/2" to 4": Every standard trade size covered
- Radius and deduct: Bending radius and deduct values for each size
- Gain values: Pre-calculated gain for accurate conduit cut lengths
Fraction Calculator
Built-in feet-inch-fraction math so you can add, subtract, multiply, and divide measurements directly.
- Tape-measure input: Enter measurements exactly as you read them
- Four operations: Add, subtract, multiply, and divide fractions
- Auto simplification: Results reduce to the simplest fraction automatically
- No conversion needed: Work in fractions without switching to decimals
Dual Units
Switch between Imperial and Metric with instant conversion. Work in the units your job requires.
- Imperial: Feet, inches, and fractions for North American standards
- Metric: Millimeters and centimeters for international projects
- Instant conversion: Toggle between systems without re-entering values
- Consistent results: All calculations update automatically when you switch
Try Conduit Bending
Free on the App Store. Premium features available through in-app purchase.
